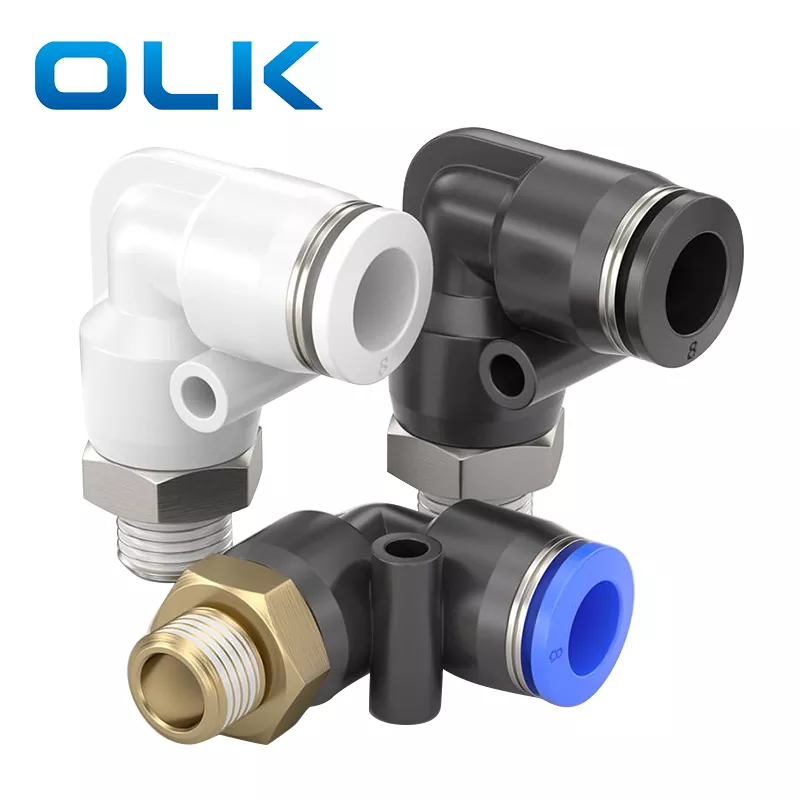

The PL male Elbow Push In Tube Fitting is a 90-degree elbow connector ideal for use in confined spaces or where tubing redirection is required.

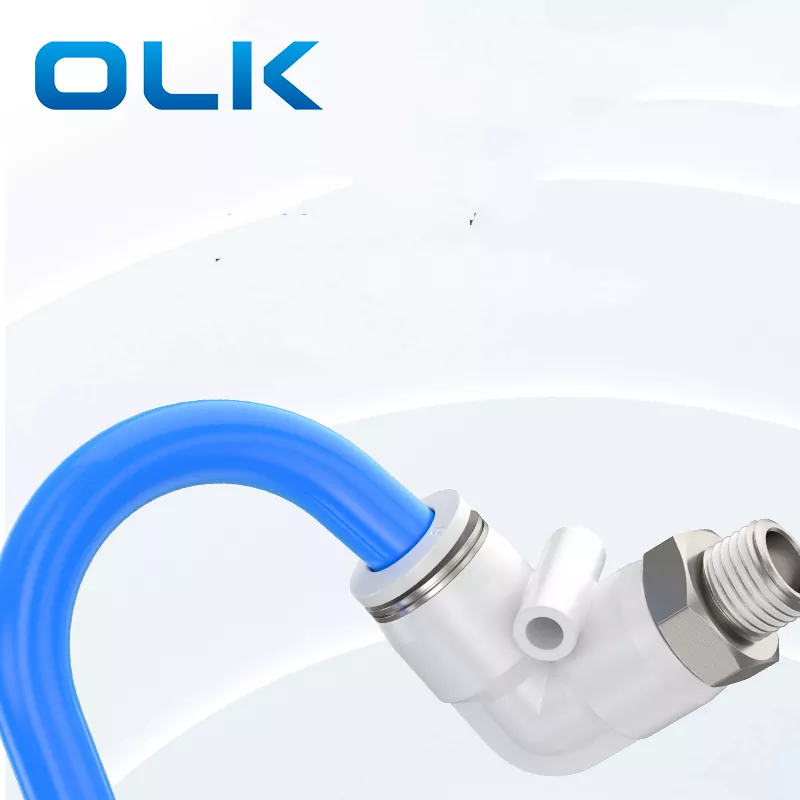

Product features: Compact structure, suitable for small spaces;Right angle steering design, convenient for tracheal wiring
|
Ordering code |
|||
|
PL |
8 |
-- |
01 |
|
Model |
Tube size (metric) |
|
Thread type (55°straight tube thread) |
|
|
4:4mm |
|
01:G1/8 |
|
|
6:6mm |
|
02:G1/4 |
|
|
8:8mm |
|
03:G3/8 |
|
|
10:10mm |
|
04:G1/2 |
|
|
12:12mm |
|
|
|
|
14:14mm |
|
|
|
|
16:16mm |
|
|
|
Fluid |
Air/water(conditional)/vacuum |
|
Operating pressure |
0-1.0Mpa |
|
Vacuum pressure |
-100Kpa(10 Torr) |
|
Operating temperature |
-10-60℃ |
|
Material |
NYLON(PA),Polyurethane(PU) |
|
Inch Tube Fitting |
Metric Tube Fitting |

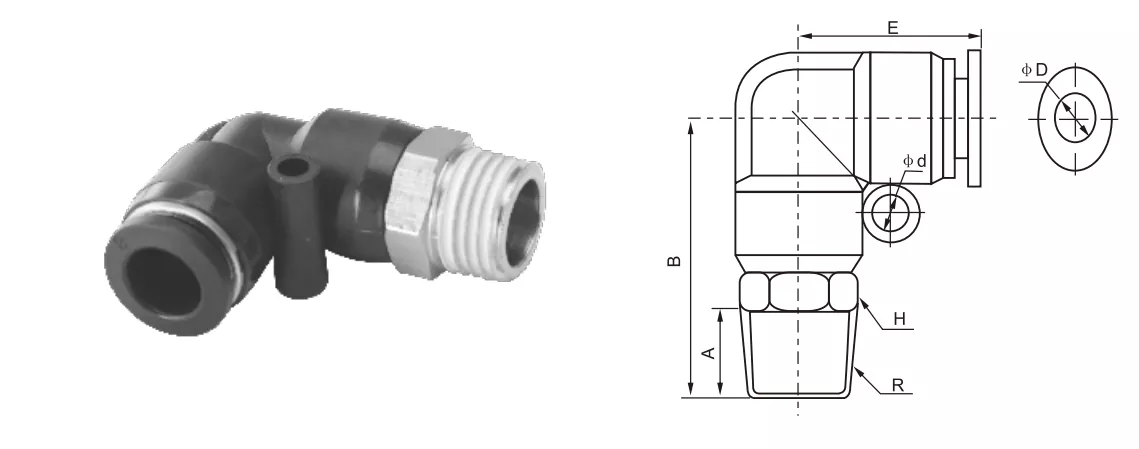

φD |
R |
A |
B |
H |
E |
φd |
|
PL5/32-M5 |
PL4-M5 |
4 |
M5 |
4.5 |
25 |
10 |
19.7 |
/ |
|
PL5/32-01 |
PL4-01 |
4 |
R1/8 |
7 |
26.5 |
10 |
19.7 |
/ |
|
PL5/32-02 |
PL4-02 |
4 |
R1/4 |
9 |
28 |
14 |
19.7 |
/ |
|
PL1/4-M5 |
PL6-M5 |
6 |
M5 |
4.5 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-01 |
PL6-01 |
6 |
R1/8 |
7 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-02 |
PL6-02 |
6 |
R1/4 |
9 |
29.5 |
14 |
20.8 |
3.5 |
|
PL1/4-03 |
PL6-03 |
6 |
R3/8 |
10 |
30.5 |
17 |
20.8 |
3.5 |
|
PL1/4-04 |
PL6-04 |
6 |
R1/2 |
11 |
32 |
21 |
20.8 |
3.5 |
|
PL5/16-01 |
PL8-01 |
8 |
R1/8 |
8 |
31.7 |
14 |
23.5 |
4.5 |
|
PL5/16-02 |
PL8-02 |
8 |
R1/4 |
10 |
33.8 |
14 |
23.5 |
4.5 |
|
PL5/16-03 |
PL8-03 |
8 |
R3/8 |
10 |
33.8 |
17 |
23.5 |
4.5 |
|
PL5/16-04 |
PL8-04 |
8 |
R1/2 |
11 |
35.5 |
21 |
23.5 |
4.5 |
|
PL3/8-01 |
PL10-01 |
10 |
R1/8 |
8 |
35.5 |
17 |
27.4 |
4.5 |
|
PL3/8-02 |
PL10-02 |
10 |
R1/4 |
10 |
37.5 |
17 |
27.4 |
4.5 |
|
PL3/8-03 |
PL10-03 |
10 |
R3/8 |
10 |
38 |
17 |
27.4 |
4.5 |
|
PL3/8-04 |
PL10-04 |
10 |
R1/2 |
11 |
38.6 |
21 |
27.4 |
4.5 |
|
PL1/2-01 |
PL12-01 |
12 |
R1/8 |
8 |
38 |
19 |
30.3 |
5 |
|
PL1/2-02 |
PL12-02 |
12 |
R1/4 |
10 |
39.5 |
19 |
30.3 |
5 |
|
PL1/2-03 |
PL12-03 |
12 |
R3/8 |
10 |
40.5 |
19 |
30.3 |
5 |
|
PL1/2-04 |
PL12-04 |
12 |
R1/2 |
11 |
42 |
21 |
30.3 |
5 |
|
|
PL14-03 |
14 |
R3/8 |
12 |
42.5 |
24 |
30.3 |
4 |
|
|
PL14-04 |
14 |
R1/2 |
15 |
45 |
24 |
30.3 |
4 |
|
|
PL16-03 |
16 |
R3/8 |
15 |
50 |
24 |
34 |
4 |
|
|
PL16-04 |
16 |
R1/2 |
15 |
50.5 |
27 |
34 |
4 |
|
Name/type |
Interface Structure Description |
|
PC Elbow |
The pipe joint is bent at a 90°angle, and the other end is internally threaded |
|
PL Elbow |
One end is inserted and the other end has an external thread of 90° |
|
PV Elbow |
Both ends are tube insertion type, with a 90°bend |
What material is the PL connector made of?
copper
What are the names of the connecting tube fitting parts?

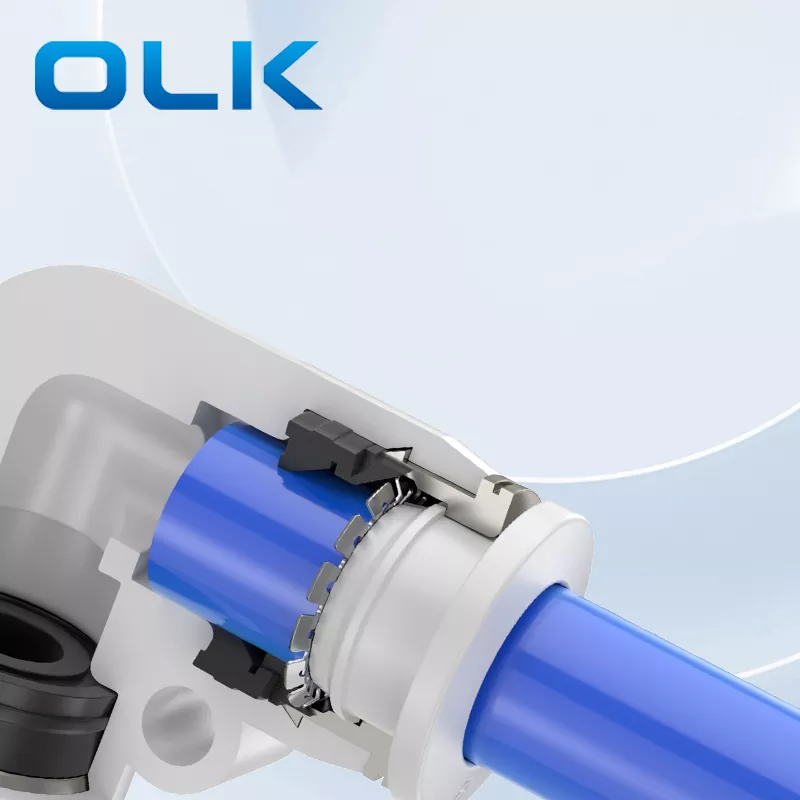

Quick connecting tube fitting internal structure:Release,zinc alloy card set,lock clip spring,lock sleeve,clasp sealing ring,high strength plastics
What type of PL thread is it?
It is a metric thread, M represents.
What means ‘Elbow’ in pneumatic fitting?
Elbow Fitting：A pneumatic fitting that allows the tube to change direction, typically at a 90-degree angle.
